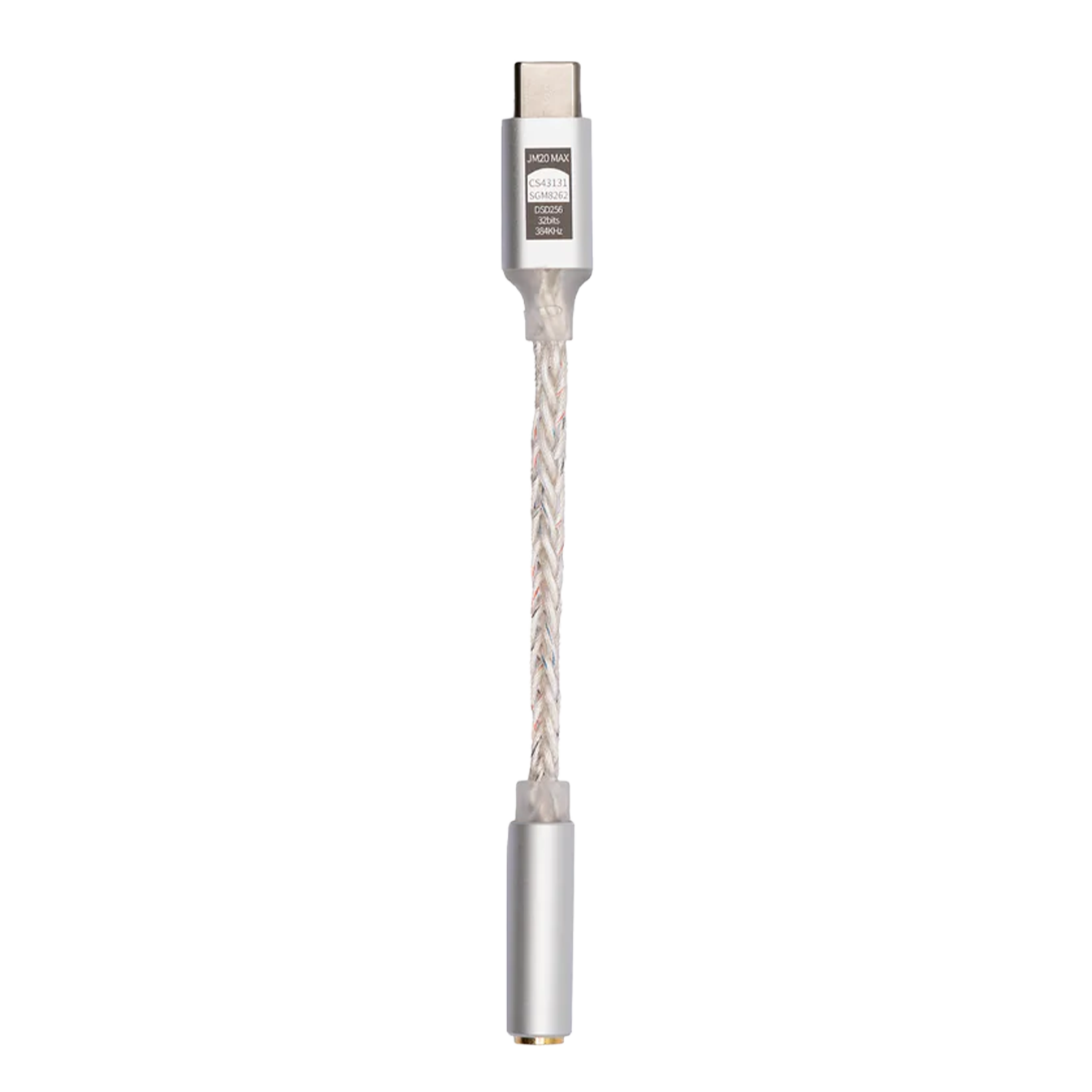

JCALLY JM20 MAX DAC Amplifier | CS43131 USB-C

Name: Jcally JM20 MAX
Brand: JCALLY
Price: 2300.00 EGP
Availability: InStock

Overview

Jcally JM20 MAX in Egypt

Jcally JM20 MAX pairs a Cirrus Logic CS43131 DAC with an SGM8262 amplifier for wired headphone playback. The USB-C input feeds a 3.5mm single-ended output rated at 195mW into 32Ω.

It supports PCM up to 32-bit/384kHz and DSD through native DSD256. A fixed eight-core silver-plated copper cable and machined aluminium housing form a compact 6.5g assembly; headset microphone passthrough and inline remote controls are not supported.

The JM20 MAX is a focused option for a portable music library that includes both PCM recordings and DSD albums. Delivered across Egypt with cash on delivery.

Key features

Why it plays above its price

01

CS43131 conversion

The Cirrus Logic DAC handles digital decoding within the portable adapter.

02

SGM8262 output stage

A separate amplifier provides the drive for connected headphones.

03

195mW at 32Ω

The stated output offers useful headroom for suitable wired headphones.

04

PCM and DSD libraries

Support for both formats lets one adapter serve different music collections.

05

Native DSD256

Compatible playback software can send supported DSD material to the DAC.

06

Single-ended headphone access

The 3.5mm output connects to a standard stereo headphone cable.

07

A compact USB-C source link

The input keeps the wired listening chain short and portable.

08

Silver-plated eight-core link

A flexible cable joins the source connector to the headphone output housing.

09

Machined aluminium

The CNC-machined enclosure gives the small audio circuit a rigid outer shell.

10

Low carry weight

A 6.5g body-and-cable assembly is easy to include in an IEM pouch.

11

Pocket-friendly length

The approximately 110mm assembly takes little space beside a music source.

12

Music-focused design

The playback-only connection suits listeners who do not need an inline microphone path.

13

No separate battery to tend

The source supplies operating power through USB.

14

One DAC and one amplifier

Distinct conversion and amplification chips make the signal architecture clear.

Specifications

Full specification

Brand JCALLY

Model JM20 MAX

Type USB DAC/amp dongle

DAC chip Cirrus Logic CS43131

Amplifier chip SGM8262

Input USB-C

Output 3.5mm single-ended

Output power at 32Ω 195mW @ 32Ω

Output power at 600Ω 10.9mW @ 600Ω

Maximum PCM 32-bit/384kHz

DSD support DSD64, DSD128, native DSD256

Signal-to-noise ratio >126dB

Dynamic range 122dB

Frequency response 20Hz - 20kHz

Cable Fixed eight-core silver-plated copper

Housing material CNC-machined aluminium alloy

Overall length 110mm ± 10mm

Weight 6.5g

Headset microphone passthrough Not supported

Inline remote controls Not supported

Power source USB bus power

Warranty 14 days, defects - genuine-unit verified

Why choose

Is the Jcally JM20 MAX right for you?

CS43131 DAC with separate SGM8262 amplification
195mW specified output into 32Ω
PCM and native DSD format support
Existing 3.5mm headphone cables remain usable
Machined aluminium construction at 6.5g

Best for

A compact music-focused headphone setupPlayback of a mixed PCM and DSD collectionPairing suitable headphones with a higher-output dongleUsing 3.5mm IEMs at a desk or on the moveListening without a need for headset microphone passthrough

Delivery & payment

Shipping, payment & returns

Delivery

Ships in 48h — weekends may vary. Nationwide courier across Egypt, next-day where available.

Payment

Cash on delivery, Telda, Instapay or Vodafone Cash.

Warranty & returns

14-day cover against product defects. Unopened items can still be returned within 14 days.

Questions

Jcally JM20 MAX — frequently asked

Is the JM20 MAX a dual-DAC device?+

It has one CS43131 DAC and a separate SGM8262 amplifier; the two-chip design does not mean two DACs.

Which headphone connection does it offer?+

The JM20 MAX has a 3.5mm single-ended headphone output.

What power can it supply at 32Ω?+

Its specified output is 195mW into a 32Ω load.

Does it support DSD playback?+

DSD64, DSD128 and native DSD256 are supported through an appropriate source playback path.

How high does PCM decoding go?+

The maximum supported PCM format is 32-bit/384kHz.

Will the microphone on my IEM cable pass through?+

The JM20 MAX does not support headset microphone passthrough or inline remote controls.

Is every high-impedance headphone an ideal match?+

Headphone sensitivity must be considered alongside impedance; the published output at 600Ω is 10.9mW.

Can it receive music over Bluetooth?+

The JM20 MAX takes digital audio through USB-C and operates as a wired DAC/amp.

How much does the adapter weigh?+

Its specified net weight is 6.5g, with an overall length of approximately 110mm.

What warranty is provided locally?+

Nyvrix covers the JM20 MAX with 14-day cover against product defects and verifies the unit's genuineness.
