Kz Eldar

Overview

Kz Eldar in Egypt

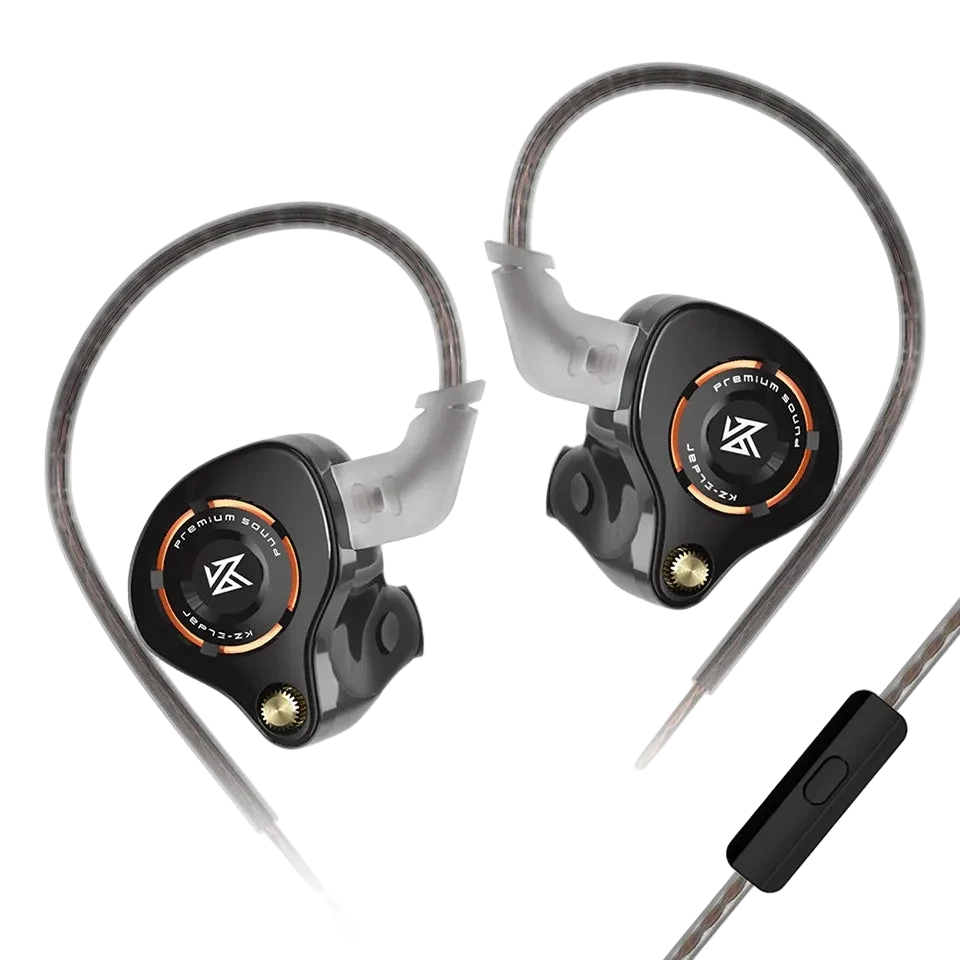

Kz Eldar is a wired in-ear built on a single large dynamic balanced driver with a 4-layer voice coil, an internal damping system and an open faceplate vent. Tuning is KZ's HM Graph curve. This listing is the 3.5 mm OFC twin-lead cable with a microphone, 120 ±5 cm, worn over the ear on a 0.78 mm 2-pin.

Electrical ratings are 24 ohm, 105 ±3 dB/mW at 1 kHz and 20 Hz - 40 kHz. In the box: the earphones, the mic cable, silicone tips and a card. There is no ANC and no wireless radio - isolation is the silicone seal, while the faceplate vent is there for the large driver.

The 3.5 mm mic cable in this listing makes Kz Eldar a chat-ready over-ear set with HM Graph tuning and a vented faceplate, not a silent studio monitor. Delivered across Egypt with cash on delivery, 14-day cover against product defects and genuine-unit verification.

Tuning

Sound signature

Mild V

A light bass and treble lift. Easy, not extreme.

Above 0 dB = more energy at that frequency. Practiphile · stock.

This set vs typical Band Range What you hear

+5.99 dB Sub-bass 20-80 Hz Deep rumble

+2.08 dB Mid-bass 80-250 Hz Punch

-0.78 dB Lower mids 250-800 Hz Body

+0.73 dB Upper mids 800-2 kHz Vocals

+2.64 dB Presence 2-5 kHz Clarity

+4.03 dB Treble 5-8 kHz Sparkle

The figures on the left are this set compared with a typical target, averaged across each range. They describe the shape, not the quality. IEC 711 measurement at the boxed default. Shape above 8 kHz includes some of the lab gear.

Key features

Why it plays above its price

01

Single large dynamic balanced driver

Kz Eldar uses one large dynamic balanced driver per side, so the full band comes from a single moving assembly rather than a hybrid array.

02

HM Graph tuning

The voicing is KZ's HM Graph tuning, the house curve applied to this single-driver set.

03

4-layer voice coil

The driver uses a 4-layer voice coil, which increases coil turns in the magnetic gap compared with a simple two-layer wind.

04

Internal damping system

A damping system inside the housing is part of the driver assembly, used to control the large dynamic's motion.

05

Open faceplate vent

The faceplate is vented rather than a fully closed plate, which is how this design relieves the large driver.

06

24 ohm, 105 ±3 dB/mW

At 24 ohm and 105 ±3 dB/mW at 1 kHz it plays from a phone; this listing's 3.5 mm mic cable is the usual portable termination.

07

20 Hz - 40 kHz rating

Published frequency response is 20 Hz - 40 kHz.

08

Detachable 2-pin socket

A 0.78 mm 2-pin socket lets you swap the stock mic cable for a listening-only lead if you want.

09

OFC twin-lead, 120 ±5 cm

The included cable is oxygen-free copper in a twin-lead build, 120 ±5 cm long.

10

Over-ear cable routing

The stock lead is meant to hook over the ear, which takes strain off the 2-pin and helps the shells stay seated.

11

3.5 mm with microphone

This listing is the 3.5 mm cable with an inline mic, so calls and game chat work without a second headset.

12

Silicone tips and card

The kit is the earphones, mic cable, silicone tips and a card - no extra foam set is listed.

13

Single-driver timbre

One large dynamic keeps bass into mids on the same diaphragm, which is the point of skipping a BA treble array here.

14

Phone-level load

24 ohm is an easy analogue load; you do not need a dedicated amplifier for useful volume.

15

Serviceable 2-pin

A damaged mic boom or lead is a cable swap, not a new pair of shells.

16

Silicone-seal isolation

No ANC: the in-ear silicone seal is what cuts outside noise, while the open faceplate vents the driver.

Specifications

Full specification

Brand KZ

Model Eldar

Type Wired in-ear monitor (IEM)

Driver configuration Single large dynamic balanced driver

Voice coil 4-layer

Tuning HM Graph

Damping Internal damping system

Faceplate Open vent

Impedance 24 ohm

Sensitivity 105 ±3 dB/mW @ 1 kHz

Frequency response 20 Hz - 40 kHz

Connector 0.78 mm 2-pin (detachable)

Cable OFC twin-lead, 120 ±5 cm, over-ear

Plug 3.5 mm with microphone (this listing)

Microphone Yes (inline, this listing)

Wear style Over-ear cable

Active noise cancelling No (passive isolation only)

Wireless No (wired)

In the box IEMs, mic cable, silicone tips, card

Warranty 14 days, defects - genuine-unit verified

Why choose

Is the Kz Eldar right for you?

Single large dynamic balanced driver, not a hybrid.
HM Graph tuning with a 4-layer voice coil.
Internal damping and an open faceplate vent.
This listing is 3.5 mm with an inline mic.
OFC twin-lead, 120 ±5 cm, over-ear, 0.78 mm 2-pin.
24 ohm / 105 ±3 dB/mW - phone-friendly.

Best for

Single-DD KZ listenersCalls and game chat (mic cable in the box)Over-ear 3.5 mm wearPhones and dongles at 24 ohmHM Graph voicingA vented-faceplate dynamic set

Delivery & payment

Shipping, payment & returns

Delivery

Ships in 48h — weekends may vary. Nationwide courier across Egypt, next-day where available.

Payment

Cash on delivery, Telda, Instapay or Vodafone Cash.

Warranty & returns

14-day cover against product defects. Unopened items can still be returned within 14 days.

Questions

Kz Eldar — frequently asked

What driver does Kz Eldar use?+

A single large dynamic balanced driver with a 4-layer voice coil, internal damping and an open faceplate vent.

What is HM Graph on Kz Eldar?+

HM Graph is KZ's tuning name for this set - the voicing applied to the large dynamic driver.

Does this Kz Eldar have a microphone?+

Yes. This listing is the 3.5 mm OFC twin-lead cable with an inline mic, 120 ±5 cm, routed over the ear.

Does Kz Eldar need an amplifier?+

No. It is 24 ohm and 105 ±3 dB/mW at 1 kHz, so a phone or dongle is enough.

Can I change the Kz Eldar cable?+

Yes. The shells are 0.78 mm 2-pin. A listening-only 2-pin cable will fit if you drop the mic lead.

Is Kz Eldar a hybrid?+

No. It is one large dynamic balanced driver per side, not a BA hybrid.

Is Kz Eldar good for calls and games?+

This listing includes the mic cable, so chat works. Tuning is HM Graph on a large dynamic - music-first, with a mic for talk.

How is Kz Eldar meant to be worn?+

Over-ear: hook the OFC twin-lead over the pinna so the 2-pin is not hanging straight down.

What is in the Kz Eldar box?+

The earphones, the mic cable, silicone tips and a card.

What warranty does Kz Eldar have?+

14 days, defects - genuine-unit verified.
